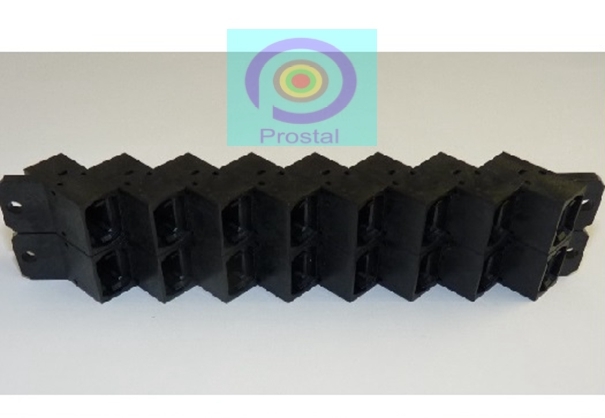

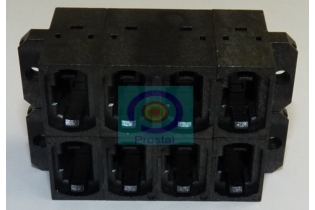

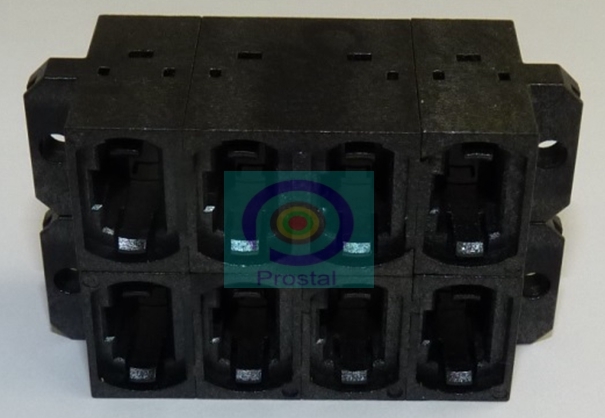

MPO stackable adaptor

Model Number：HDMPA

DETAIL
　
Prostal's MPO stackable adaptor designed for advanced fiber optics networking systems required in limit spaces. We named it LC stackable adaptors as well. Two types are available: one is angled type 45 degree, the other is straight type.

Features:
IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces
Stacked together with multiple rows and columns into a very dense assembly
Internal shutter without manual actuation is optional for eye safety
Keyway available for either up or down
Standard colors: Black, Aqua, Beige, Violet.
Interlock with all adjacent adaptor
Complies with GR-326-CORE and RoHS.

Performance specifications:
Sleeve material:                        Ceramic
Typical Insertion Loss:             0.1dB
Maximum Insertion Loss:        0.3dB
Operating temperature:          -40~75℃
Storage Temperature:             -55~85℃
