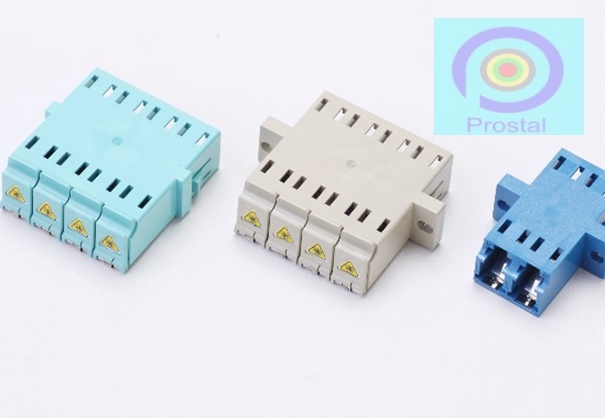

LC adaptor with auto shutter

Model Number：ASLCA

DETAIL

To protect people from dangerous Laser, Prostal design and supply fiber optics adaptors with auto shutter. LC adaptors with auto shutter use SC adaptor foot print.

Features:
Auto shutter options: external auto shutter door and internal auto shutter metal plate
Option to with flanges or without flange
Diversity: Many colors are available, include: blue, green, black, aqua, beige, and magenta.
High reliability: the assembly is done in factory, 100% tests before shipment.
Complies with GR-326-CORE and RoHS.

Performance specifications:
Sleeve material: Ceramic
Typical Insertion Loss: 0.1dB
Maximum Insertion Loss: 0.3dB
Operating temperature: -40~75℃
Storage Temperature: -55~85℃
