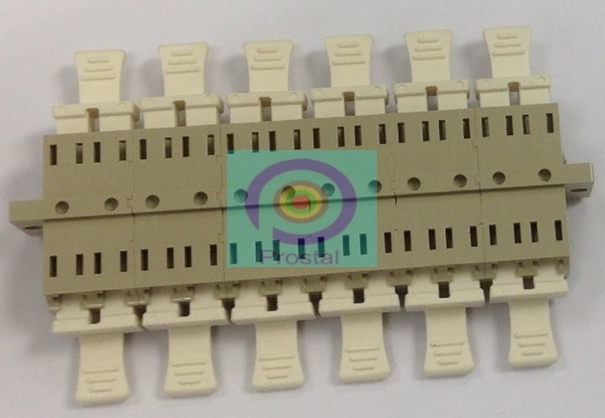

High density LC adaptors
Model Number：HDLCA
DETAIL

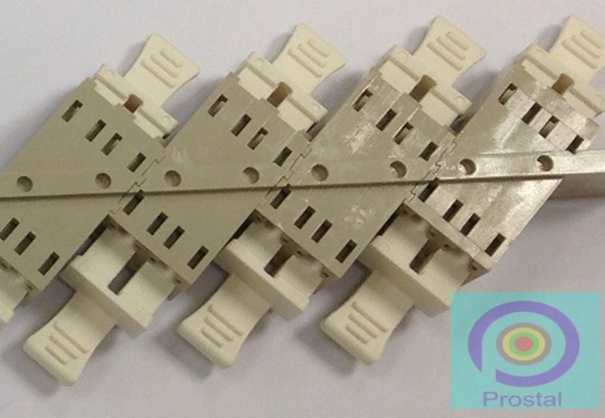

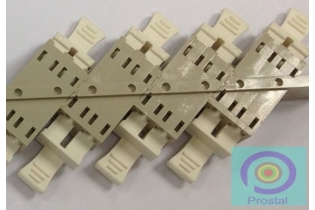

Prostal's high density LC adaptors designed for advanced fiber optics networking systems required in limit spaces. We named it LC stackable adaptors as well. Two types are available: one is angled type, the other is straight type.
Features:
Ultra flexible: can stack both multiple rows and colums, fully comply with your need.
High density: 1U 19” chassis can accommodate 180 ports LC as maximum
Diversity: Many colors are available, include: blue, green, black, aqua, beige, and magenta.

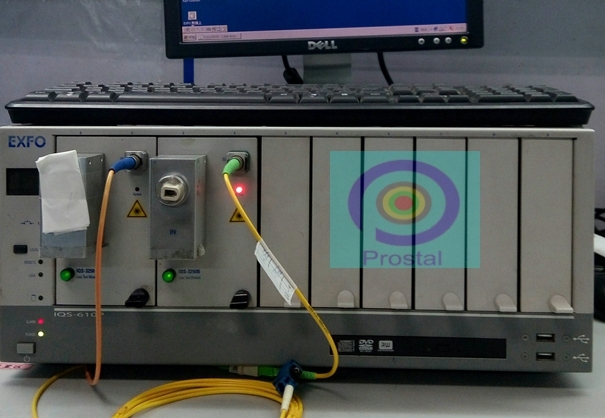

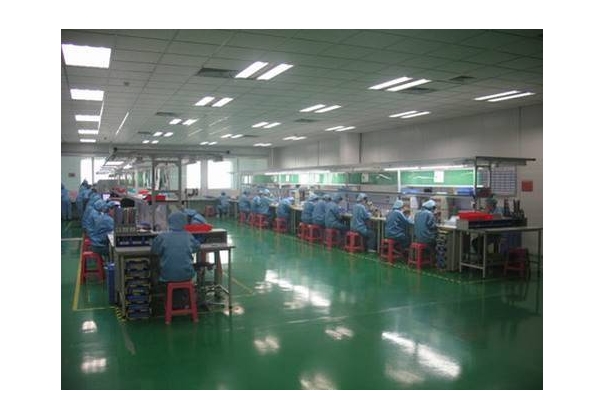

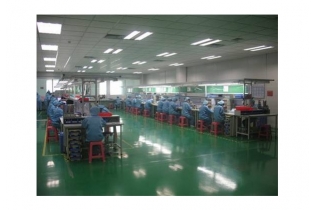

High reliability: the assembly is done in factory, 100% tests before shipment.
Complies with GR-326-CORE and RoHS.
Performance specifications:
Sleeve material: Ceramic
Typical Insertion Loss: 0.1dB
Maximum Insertion Loss: 0.3dB
Operating temperature: -40~75℃
Storage Temperature: -55~85℃
