DETAIL

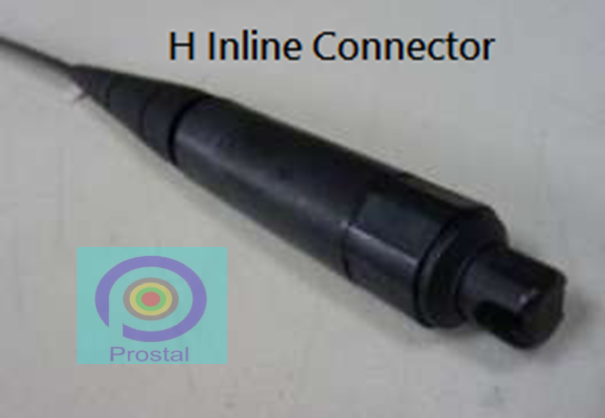

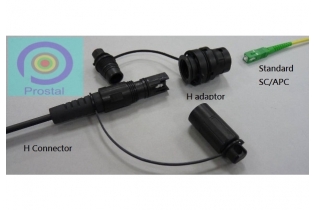

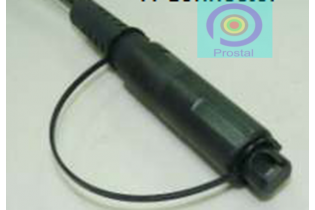

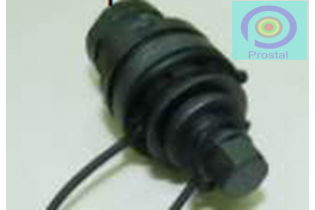

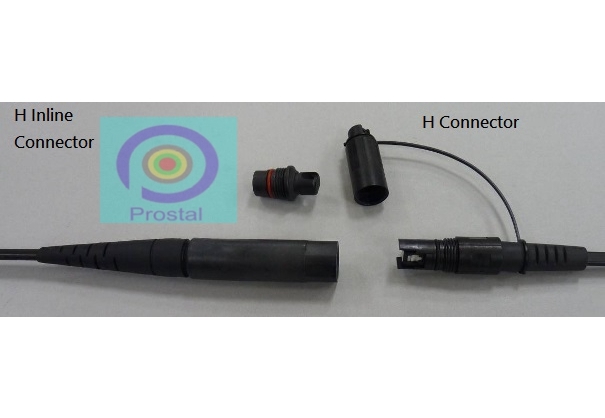

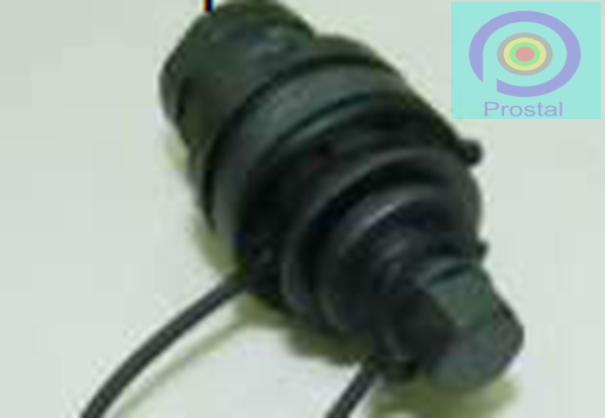

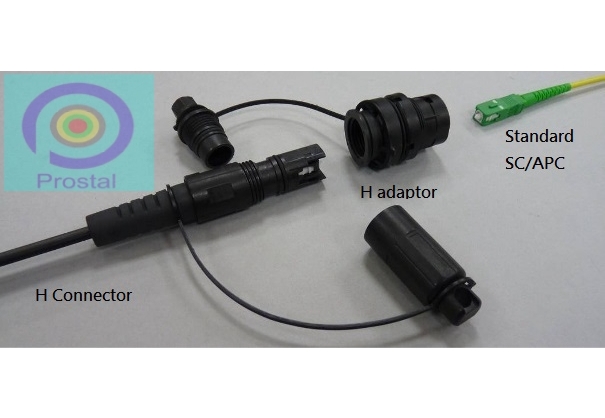

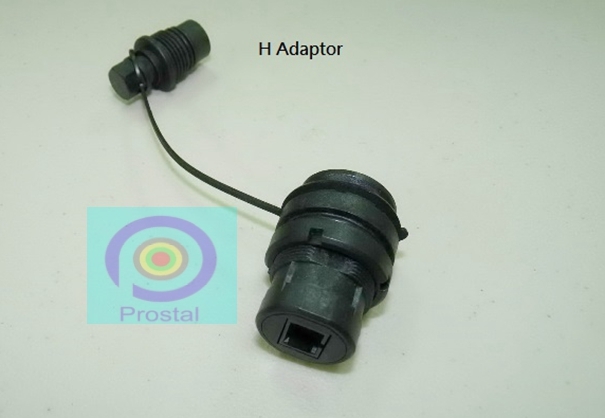

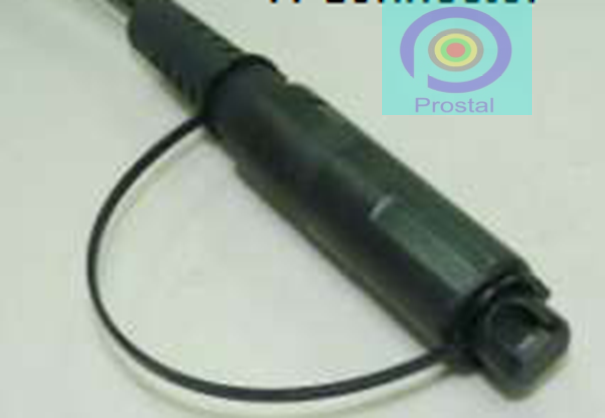

HOptic  Connectors contain an H-Connector and Receptacle adaptor as the basis for coupling inside the adaptor/connector housing. These products ensure reliability and compatibility with SC connectors currently on the market. Our HOptic Products are designed and tested to meet Telcordia 3120 requirements for rugged outdoor environments.

HOptic Drop Cable Assembly is specifically designed to significantly reduce required cable installation time for subscriber connection, therefore reducing the total installed cost of connectorization. It also provides superior durability and reliability in the drop segment of the network. The cables can be installed in both outdoor and indoor areas.

Features:
Patented products
Design and Test: meets Telcordia GR-3120 requirements.
Complies with GR-326-CORE and RoHS.
Specifications:
Parameters                               Specifications
Connector Types                      SC
Insertion Loss                          < 0.3dB
Return Loss                             ≧50dB (PC), 55dB (UPC), 60dB (APC)
Operation Temperature           40 ℃ to 70 ℃
Storage Temperature               45 ℃ to 85 ℃
