Longitudinal duct and cable slitter
Model Number：PR221042
DETAIL

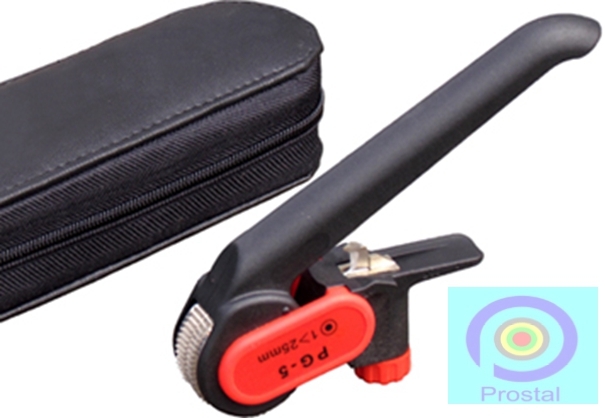

A, Longitudinal Cable Slitter PR221042
B, Professional-grade cable slitter designed for longitudinal, circumferential (ringing), and mid-span slitting of corrugated aluminum or copper shield cables, medium-density polyethylene (MDPE), and high-density polyethylene (HDPE) conduits Adjustable blade depth allows slitting of coverings of up to 1/4” (6.3mm) thick
C, Blade fully retracts inside body for storage

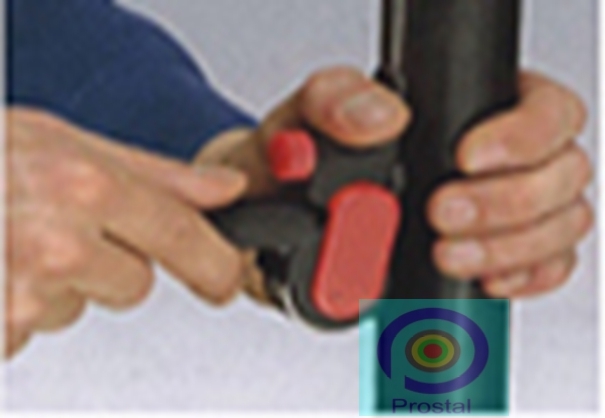

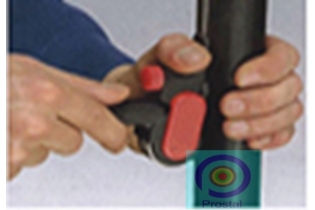

D, Cam-adjustable lever allows blade dig-in in mid-span application
E, Lever teeth designed for soft and hard jacket/covering applications
F, Longitudinal slitting of cable/duct ranging from 1/2” (12.7mm) to larger sizes
G, Circumferential slitting of cable/duct ranging from 1-1/2” (38mm) to larger sizes
H, Window cutout to access fibers inside duct ranging from 1-1/2” (38mm) to larger sizes
